Fields Widget

Set the title of the widget. Include a descriptive title to help users understand the specific content of the widget.

Select whether to wrap title text that extends beyond the available display width. When not selected, long titles are truncated with an ellipsis.

Add a description for the widget. This description displays below the widget title.

Select whether to display the widget description as a tool tip, hiding it by default.

When displayed as a tool tip, any rich text formatting in the description is removed.

Change the widget icon and icon color—or remove the icon. Widgets always include a default icon.

Select the crossed-out icon option, , to remove the icon.

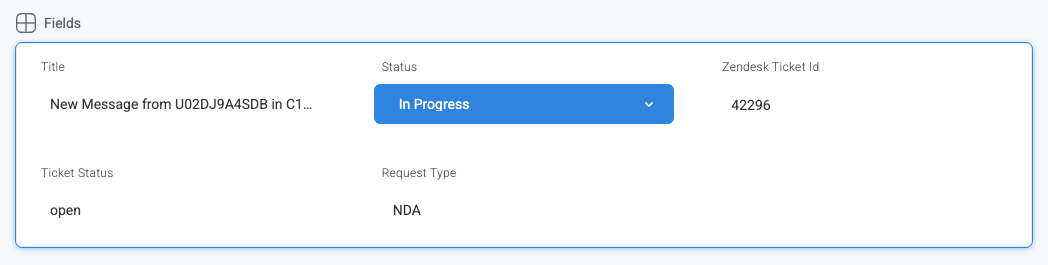

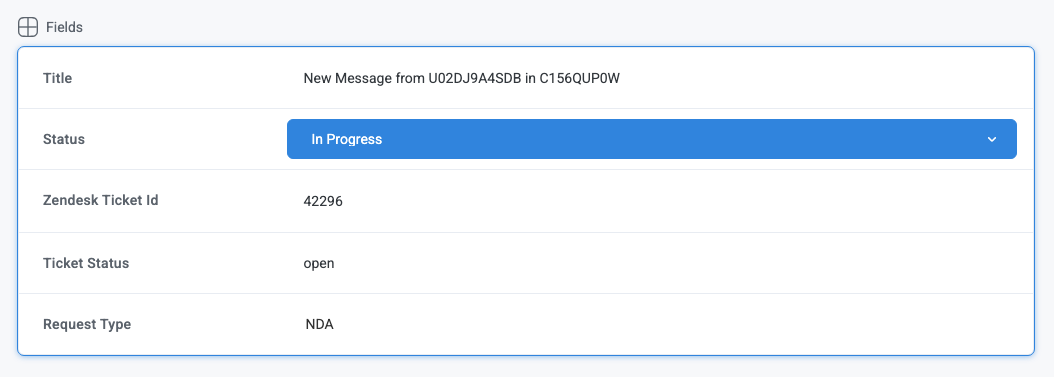

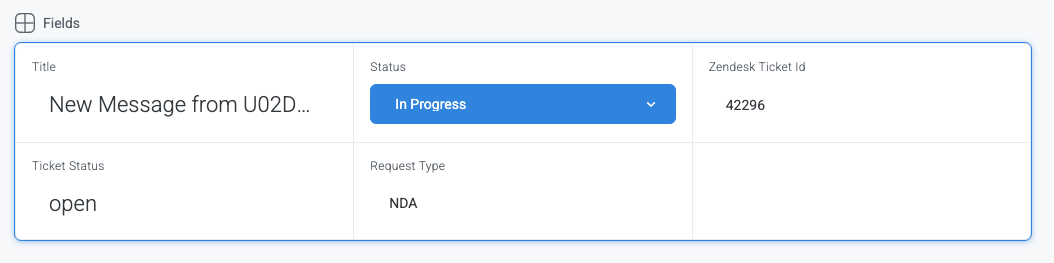

Set the layout style of the widget:

Set the display width of the widget.

The width settings of neighboring widgets determine the resulting display on the interface. For example, two neighboring widgets set to 50% width display side by side. Similarly, if one widget is set to 1/3 and the following widget is set to 2/3, the widgets will display side by side.

We recommend experimenting with widget width settings and widget placement to optimize the interface display for the screen size you're designing for. That is, if you're designing an interface for a large screen (say, a request tracking interface), you can use small widget widths and include multiple widgets together. However, if designing for mobile, leaving widgets at 100% widths is generally best.

Select whether to include a search bar with the widget. This option is helpful for Fields widgets that contain many fields and other information-heavy widgets.

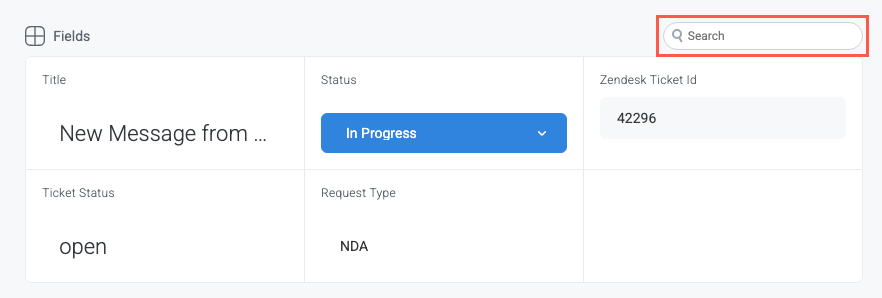

Notice the provided search field above the widget when this option is enabled:

Select whether to allow contributors with field-level access to edit field values.

Select whether to dynamically display the widget based on custom conditions. When enabled, a conditions group displays; when the specified conditions are met, the widget displays.

For example, you can set a condition to display an input-type widget only if a user enters a specific value, prompting the user to provide additional information.

For more information about configuration condition groups, see Conditions.

Condition Evaluation Method

Set how display conditions are evaluated:

• Evaluate conditions on the first load - Evaluate conditions only when the page first loads. This option does not dynamically show or hide relevant widgets when a user makes a selection; refreshing the page is required.

• Continuously evaluate (default) - Continuously evaluate conditions as the user views and interacts with the interface. Use this option to enable the interface to dynamically show or hide relevant widgets based on user input.

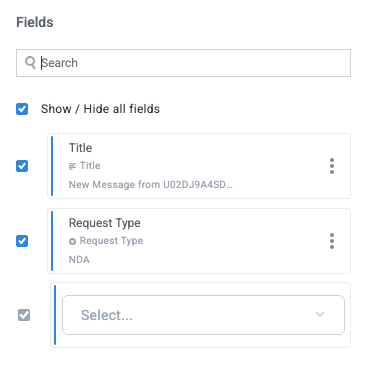

Select the module fields to display in the widget.

To edit the field label, enable field colors, remove the field, and access additional options for each field, select the three dots icon, . Additionally, you can hover over the field tile and select the up and down arrows to rearrange the fields on the widget.
